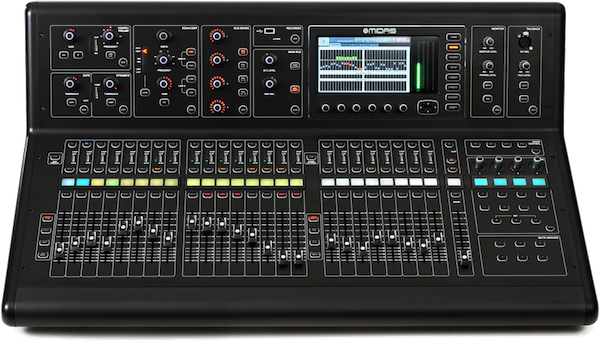

(2) Midas M32 Digital Consoles w/DL251
|
- 32 mono/8 stereo
- Four-band EQ
- 16 Bus Sends
- 8 Mute Groups
- 8 DCA Groups
- LCR mix buses
- 6 matrix
|

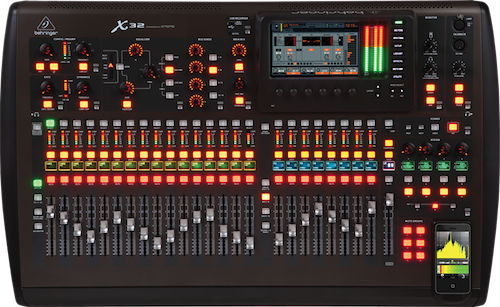

BEHRINGER X32 DIGITAL CONSOLE
|
- 32 mono/8 stereo
- Four-band EQ
- 16 XLR outs
- 8 Mute Groups
- 8 Stereo FX
- LCR mix buses
|
BEHRINGER X32 DIGITAL RACK
|
- 32 mono/8 stereo
- Four-band EQ
- 16 XLR outs
- 8 mute groups
- 8 stereo FX
- LCR mix buses
|
MIDAS VINICE 320 - 32 INPUT CONSOLE
|
- 28 mono/4 stereo
- High-pass filter
- Four-band EQ
- 6 aux sends
- 4 subgroups
- LCR mix buses
|
Midas DL251 Digital Snake
|
- 48 Inputs
- 16 Outputs
- AES50 Cat5 I/O
- Midas Pro Pre Amps & A/D Converters
|
BSS OMNIDRIVE 3x6 DIGITAL CROSSOVER
|
- 3 inputs x 6 outputs
- 24 bit/96kHz sample rates
- Assignable EQ filters
- 7 bands of dynamic EQ
- AES/EBU digital input
- Dynamic range of 112dB
- PC control with Soundbench
|
(16) dB Technologies T12 FIR Line Array
|
- 3,000 watt peak power ea.
- 3-way, self-powered Digital Line Array w/ DSP & Ethernet
- 56 bit DSP processing
- 24/96 audio processing
- LOW (1) 12"
MF (2) 6.5"
HF (3) 1.5"
- 60 Hz - 19 kHz
- Max Output: 138 dB SPL
- 100° H x 10° V
- Xover 420 Hz / 1800 Hz
- 64 lbs.
|
(8) dB Technologies T8 FIR Line Array
|
- 1400 watt peak power ea.
- 3-way, self-powered Digital Line Array w/ DSP
- 24/96 audio processing
- LOW (1) 8"
MF (1) 6.5"
HF (2) 1.5"
- 80 Hz - 19 kHz
- Max Output: 133 dB SPL
- 100° H x 15° V
- Xover 400 Hz / 1800 Hz
- 30 lbs.
|

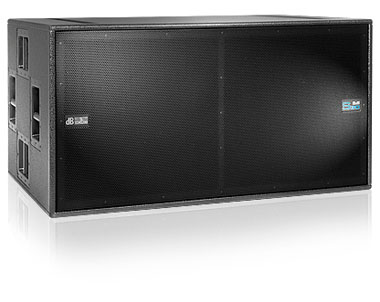

(8) dB Technologies S30 Subs
|
- 6,000 watt peak power ea.
- 56 bit DSP processing
- 24/96 audio processing
- LF (2) 18" woofers
- 30 Hz - 120 Hz
- Max Output: 141 dB SPL
- Xover out 75-120 Hz
- 160 lbs.
|

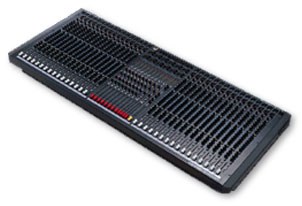

SOUNDCRAFT 40 CHANNEL MONITOR CONSOLE
|
- 12 monitor sends (9-12 stereo)
- UltraMic Plus preamp
- 100mm faders
- Pre-EQ insert point on all mono channels
- 4-band EQ:
100 HzHigh Pass Filter
HF: 13kHz
HMID: 550Hz to 13kHz
LMID: 80Hz to 1.9kHz
LF: 60Hz ±15dB
- Split Out to Front-of-House
|
SABINE GRAPHI Q DIGITAL MONITOR PROCESSOR
|
- Dual digital 31 band EQ
- 24 bit A/D and D/A with 32-bit DSP
- Dual 12 FBX digital feedback filters
- High Cut and Low Cut Filters
- Digital Compressor/Limiter
|

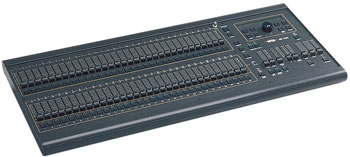

NSI MLC7532 - LIGHTING CONSOLE
|
- 64 channel digital lighting console
- 512 memory scenes
- 32 user programmable chases
- 32 submasters
- Individual channel bumps
- Audio sync
- DMX-512, SMPTE, MIDI
|
ELATION MAGIC 260
 |
- 24 fixture digital lighting console
- Controls LED and Movers
- 24 x 48 user programmable scenes
- 4 relay switches
- Audio sync
- DMX-512, MIDI
|
NSI DDR9812 - TOURING DIMMER RACK
|
- 32 channel touring rack
- 2400 watts per channel
- Supports over 64 1000 watt fixtures
- Single and three phase power
- Cam-Lok power system
- DMX 512 control
|
MID-SIZED CONCERT ROOF SYSTEM
|
- Brand: Global Truss
- Size: 26' x 20'
- Concert Roof w/ 18" Towers
- Lightweight Aluminium
- Used with LED lighting
|
LARGE CONCERT ROOF SYSTEM
|
- Brand: Penn Fab
- Size: 40' x 32'
- Professional Concert Roof System w/ 24' Towers
- Lightweight Aluminium
- Integrated PRT drop truss lighting
|
PRT TRUSS
|
- Brand: Penn Fab
- Size: 8'
- (6) 1k fixtures on SOCOPEX
- Lightweight Aluminium
- 150 lbs. ea.
|
GLOBAL TRUSS
|
- Brand: Global Truss
- Sizes: 1.25m, 1.5m, 2m
- Other: Corners & T's
- Lightweight Aluminium
|
GLOBAL TRUSS ST-180 TOWERS
|
- Brand: Global Truss
- 18' Lift Height
- 500 lb. load capacity
|

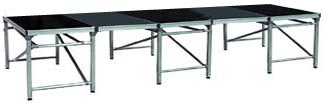

MID-SIZED STAGING
|
- Global Truss
- Professional Staging
- Lightweight Aluminium
- Stairs, Hand Rails & Skirting
- Sizes up to 24' x 20'
- Deck Size: 1m x 2m
- 15", 23"', 31" & 39" heights
|
LARGE STAGING
|
- Professional Staging
- Lightweight Aluminium
- Stairs, Hand Rails and Skirting
- Sizes up to 40X28
- Deck Size: 4' x 8'
- 1', 2', 3', 4' & 5' heights
|
